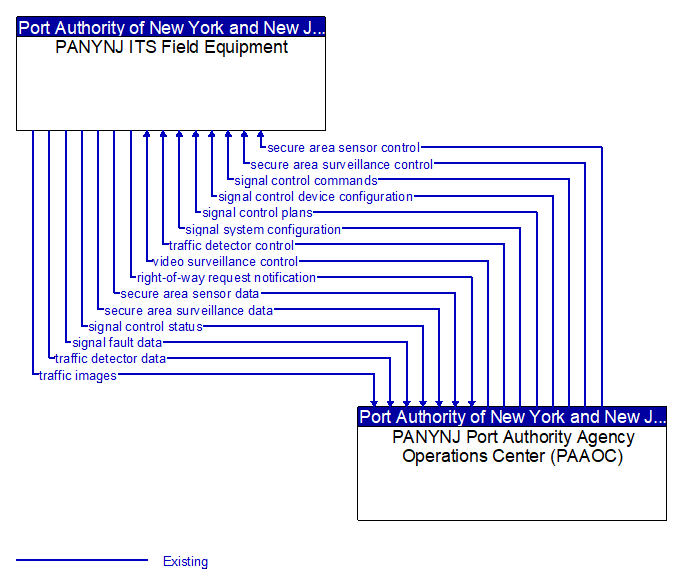

Interface: PANYNJ ITS Field Equipment - PANYNJ Port Authority Agency Operations Center (PAAOC)

Information Flow Definitions

right-of-way request notification (Existing) Selected Comm Solution

Notice that a request has occurred for signal prioritization, signal preemption, pedestrian call, multi-modal crossing activation, or other source for right-of-way.

secure area sensor control (Existing) Selected Comm Solution

Information used to configure and control threat sensors (e.g., thermal, acoustic, radiological, chemical), object, motion and intrusion detection sensors. The provided information controls sensor data collection, aggregation, filtering, and other local processing.

secure area sensor data (Existing) Selected Comm Solution

Data provided by threat sensors (e.g., thermal, acoustic, radiological, chemical), and intrusion, motion, and object detection sensors in secure areas indicating the sensor's operational status, raw and processed sensor data, and alarm indicators when a threat has been detected.

secure area surveillance control (Existing) Selected Comm Solution

Information used to configure and control audio and video surveillance systems used for transportation infrastructure security in secure areas. The provided information controls surveillance data collection, aggregation, filtering, and other local processing.

secure area surveillance data (Existing) Selected Comm Solution

Data collected from surveillance systems used to monitor secure areas. Includes video, audio, processed surveillance data, equipment operational status, and alarm indicators when a threat has been detected.

signal control commands (Existing) Selected Comm Solution

Control of traffic signal controllers or field masters including clock synchronization.

signal control device configuration (Existing) Selected Comm Solution

Data used to configure traffic signal control equipment including local controllers and system masters.

signal control plans (Existing) Selected Comm Solution

Traffic signal timing parameters including minimum green time and interval durations for basic operation and cycle length, splits, offset, phase sequence, etc. for coordinated systems.

signal control status (Existing) Selected Comm Solution

Operational and status data of traffic signal control equipment including operating condition and current indications.

signal fault data (Existing) Selected Comm Solution

Faults reported by traffic signal control equipment.

signal system configuration (Existing) Selected Comm Solution

Data used to configure traffic signal systems including configuring control sections and mode of operation (time based or traffic responsive).

traffic detector control (Existing) Selected Comm Solution

Information used to configure and control traffic detector systems such as inductive loop detectors and machine vision sensors.

traffic detector data (Existing) Selected Comm Solution

Raw and/or processed traffic detector data which allows derivation of traffic flow variables (e.g., speed, volume, and density measures) and associated information (e.g., congestion, potential incidents). This flow includes the traffic data and the operational status of the traffic detectors

traffic images (Existing)

High fidelity, real-time traffic images suitable for surveillance monitoring by the operator or for use in machine vision applications. This flow includes the images. Meta data that describes the images is contained in another flow.

video surveillance control (Existing) Selected Comm Solution

Information used to configure and control video surveillance systems.
